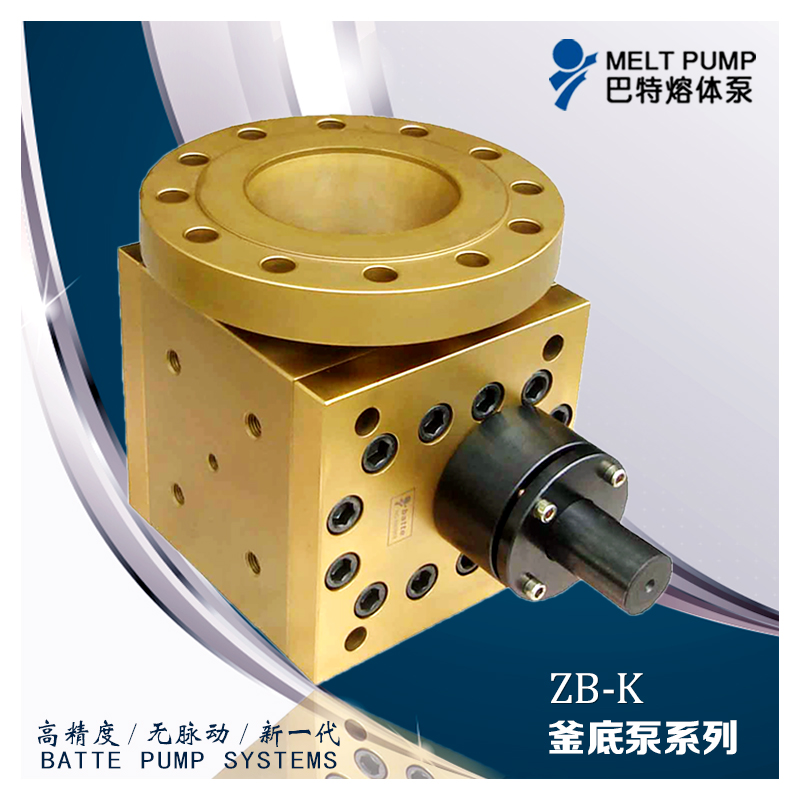

ZB-F、ZB-K系列釜底泵


ZB-F、ZB-K系列釜底泵主要用于輸送真空反應器中的中高粘度的介質，吸入口大法蘭設計，在真空條件下能使高粘度介質順利吸入。主要應用于ABS,PS,PMMA,PBT,PT等介質。


　　泵體: 不銹鋼

　　齒輪: M2鋼,其他材料可指定。

　　滑動軸承: 高溫工具鋼，不銹鋼。

　　軸封: 填料密封

　　加熱系統 : 熱媒加熱 導熱油 （K系列電加熱）

　　規格/流量范圍: 從0.5CC - 2500CC,  0.5cm3/rev - 2500cm3/rev


　　粘度: ≤40000 Pas

　　溫度: ≤400℃

　　清洗溫度: ≤450℃

　　進口壓力: 最高可達12MPa

　　最高壓差: 可達25MPa


　　ZB-F or ZB-K series melt pump is mainly used for transporting medium or high viscosity medium out of the vacuum reaction kettle. On basis of large suction inlet flange design, the high viscosity medium is able to absorb inside under vacuum conditions. This series of melt pump is primarily applicable for ABS, PS, PMMA, PBT, PT, etc.


　　Material for Melt Pump Body:Stainless Steel

　　Material for Gear: M2 Steel (Optional)

　　Material for Sliding Bearing: High Temperature Tool Steel or Stainless Steel

　　Shaft Sealing: Packing Sealing

　　Heating System: Heating Medium or Conduction Oil (ZB-K series melt pump adopts electrical heating.)

　　Model/Flow Range: 0.5CC - 2500CC, 0.5cm3/rev - 2500cm3/rev


　　Viscosity: ≤40000 Pas

　　Working Temperature: ≤400℃

　　Cleaning Temperature: ≤450℃

　　Inlet Pressure: ≤12MPa

　　Differential Pressure: ≤25MPa
